11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h

1시 40분 HQ
MOQ
협상 가능
가격
11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
유형: 직선주, 장력 막대기, 전환 막대기
표면 처리: 뜨거운 딥 아연 도금
두께: 1 밀리미터 내지 30 밀리미터
정착물을 밝히는 광학 조립체: IP 65
크기의 타당성: +- 2%
풍속: 160 킬로미터 / H, 30m/s
강조하다:

ISO 9001 Certified Electric Power Pole

,

IP 65 Rated Utility Power Pole

,

High Wind Speed Steel Power Pole

기본 정보
원래 장소: 중국
브랜드 이름: Milky Way
인증: ISO, BV,
모델 번호: 전기 프로젝트용 다면적 인 진열 철강 유틸리티 유통 전력 기둥
결제 및 배송 조건
포장 세부 사항: 고객 요청에 따라
배달 시간: 보통 확인하는 것 2 주 뒤에
지불 조건: t/t
공급 능력: 300개 부분은 하루에 막대기를 씁니다
제품 설명
11KV 38KV Hot Dip Galvanized Electric Power Pole

High tensile strength octagonal utility poles with flaw testing and ISO 9001 certification.

Product Specifications
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length per section Within 14m once forming without slip joint
Welding Passed flaw testing. Internal and external double welding meets AWS (American Welding Society) D 1.1 standard
11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h 0
Production Process

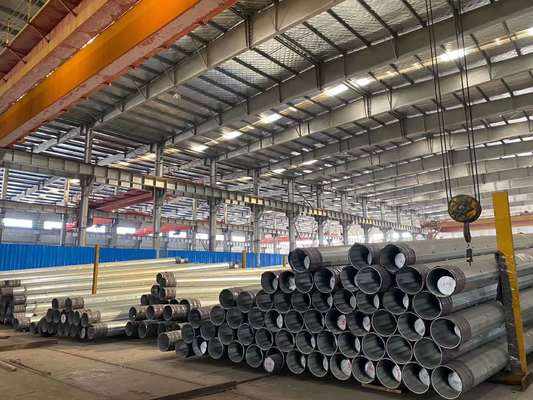

Our advanced production line includes bending calibration machines, hydraulic plate shears, slitting machines, 208T hydraulic straighteners, and other specialized equipment to ensure high-quality steel poles.

The fabrication process includes:

  • Plate cutting and bending
  • Forming and automatic welding
  • Drill holes and pre-galvanizing quality checks
  • Hot dip galvanizing and powder coating
  • Final quality inspection according to client requirements
Key Features
  • Custom designs available for various pole types (lighting, electric, traffic, flag poles)
  • Materials: Q235-Q460 hot rolled coil, ASTM573 GR65/GR50, SS400/SS490, ST52-3
  • Hot dip galvanized per ASTM A123 or client specifications
  • Single section lengths up to 16 meters
  • Thickness range: 1mm to 22mm

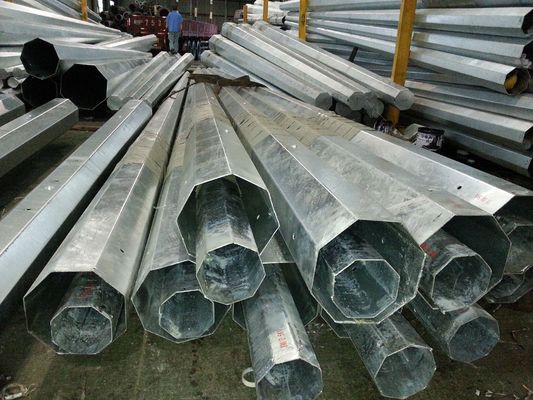

  • Multiple shapes: polygonal (6-16 sides) or round tapered
  • Easy installation and maintenance
11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h 1
Our Services
  • 24-hour response to inquiries
  • English-speaking technical support
  • Custom designs (UEM&UBM welcome)
  • Engineer-developed solutions
  • Distributor discounts and sales protection
  • 11+ years manufacturing experience
  • Sample availability for large orders
  • Quality materials and production processes
11KV 38KV Hot Dip Galvanized Electric Power Pole with ISO 9001 Certification and IP 65 Rating for High Wind Speed 160km/h 2
