18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower

100
MOQ
$99-120
가격
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
정격 전류: 10-200
정격 전압: 10-220
표면 처리: 고온 침지 아연 도금
치수 허용치: +- 2%
최소 산출 강도: 355 MPa
최소 장력 강도: 490 MPa
최대 인장 강도: 620 mpa
부문 당 길이: 14m 이내
두께: 1 mm ~ 30 mm
전력 범위: 10KV ~550KV
설계 부하: 300 ~ 1000kg
풍속: 160 킬로미터 / 시간
지진 저항: 8 학년
안전 요인: 8
제조 능력: 일 당 300개 부분
강조하다:

18m Steel Utility Power Pole

,

33kV Transmission Line Tower

,

Q235 Material Electrical Power Pole
기본 정보
원래 장소: 중국 장수
브랜드 이름: MilkyWay
모델 번호: 강철 전기, 전기 극
결제 및 배송 조건
제품 설명
18m Steel Utility Power Poles for 33kV Transmission Line Tower
High-quality steel power poles made from Q235, Q345, and Q420 materials, designed for 33kV transmission lines with superior durability and performance.
Product Specifications
Type Octagonal NGCP 69KV Galvanized electric steel power pole
Application Electricity distribution
Shape Conoid, Multi-pyramidal, Columniform, polygonal or conical
Material Q345B/A572 (minimum yield strength ≥345n/mm²), Q235B/A36 (minimum yield strength ≥235n/mm²), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Power Range 10KV ~550KV
Safety Factor 8 for conducting wire, 8 for grounding wire
Design Load 300~1000Kg applied 50cm from top pole
Surface Treatment Hot dip galvanized (ASTM A 123), color polyester powder, or client-specified standard
Wind Speed Rating 160 Km/Hour (30 m/s)
Seismic Rating Earthquake resistant to 8 grade
Standard ISO 9001
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 0 18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 1
Production Process
As a BV, ISO, SGS approved supplier in China, we have more than 20 years experience producing and exporting steel poles. We guarantee the quality of our poles, which are made from qualified materials by professional workers using advanced equipment.
Our production process includes:
  • Raw material testing
  • Cutting
  • Molding or bending
  • Welding (longitudinal)
  • Dimension verification
  • Flange welding
  • Hole drilling
  • Calibration
  • Deburring
  • Galvanization or powder coating/painting
  • Recalibration
  • Threading
  • Packaging

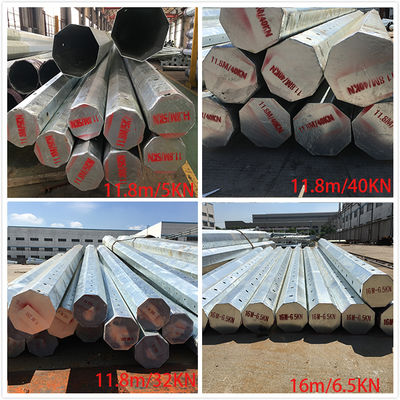

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 2 18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 3
Material Quality Assurance
All materials are purchased from reputable mill factories to ensure quality. A mill certificate with stamp and signature is required before unloading materials at our factory. All materials undergo chemical and physical analysis before production to verify strength and composition meet requirements.
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 4 18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 5
Certifications
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 6
Project Images
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 7 18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 8
Ordering Information
  • Price Term: EXW, FOB, CFR or CIF
  • MOQ: 1 set for customized orders
  • Payment: 30% T/T deposit, balance before shipment
  • Delivery Time: 10 workdays after deposit
  • Warranty: 30 years
  • Surface Treatment: Hot dip galvanization
Our Services
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 9
Pre-Sales Service
  • Inquiry and consulting support
  • Response within 24 working hours
  • Factory visits available
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 10
After-Sales Service
  • Installation training
  • Inspection reports and mill certificates provided
  • Tensile test documentation

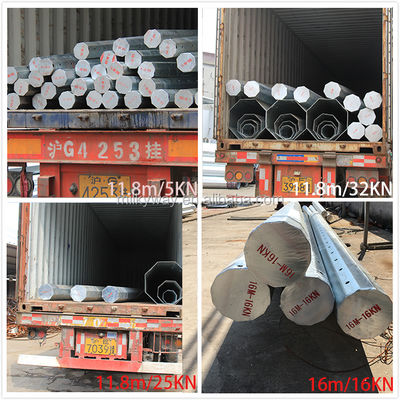

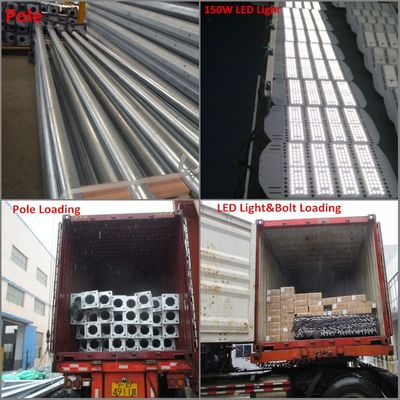

Packaging & Delivery
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 11 18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 12
Packaging Type Quantity
40&45FT Electric poles for Philippine Market 26 Tons/40HQ Containers
35FT Electric poles for Philippine Market 26 Tons/40HQ Containers
Our Company
Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, East China, near Shanghai Port. Our products are widely used in power transmission, signal transmission, and lighting for streets, roads, squares, and stadiums.
With extensive export experience since our first overseas order to Pakistan in 1991, our products have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, and Malaysia.
18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 13
