16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation

500
MOQ
$180
가격
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
소재 강도: 345 Mpa
표면 처리: 아연 도금
보호 수준: IP 65
두께 범위: 1-30 밀리미터
크기 범위: 20-120 ft
모양 옵션: 다각형, 둥근
설치 유형: 직접 매장 또는 플랜지
아연 도금 표준: IS2629-1985, BS729-1971
항복 강도: ≥345MPa (345MPa)
극 높이: 16 M
로드 용량: 800dan, 1000dan, 1250dan
용접 유형: 종 방향 용접
절단 방법: CNC 레이저 절단
형성 방법: 강 판 구부림
차폐형: 관형 강철
강조하다:

16m Electric Power Transmission Pole

,

800DaN Steel Power Pole

,

1000DaN Galvanized Steel Pole

기본 정보
원래 장소: 중국 장수
브랜드 이름: Milky Way
모델 번호: 전력 극
결제 및 배송 조건
제품 설명
16m 800DaN 1000DaN 1250DaN Galvanized Electric Power Transmission Tubular Steel Pole
Material Quality Assurance
Material Testing Process
  • All materials are sourced from reputable mill factories to ensure quality
  • Mill certificates with official stamps and signatures are required before unloading materials
  • All materials undergo chemical and physical analysis before production to verify strength and composition
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 0 16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 1 16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 2

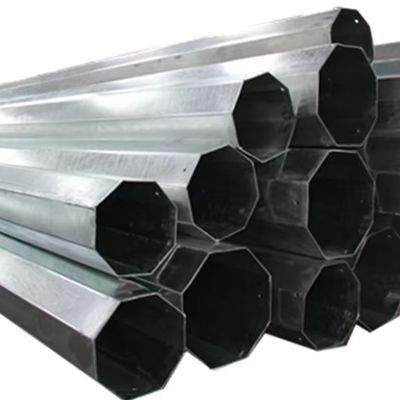

Product Introduction
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 3

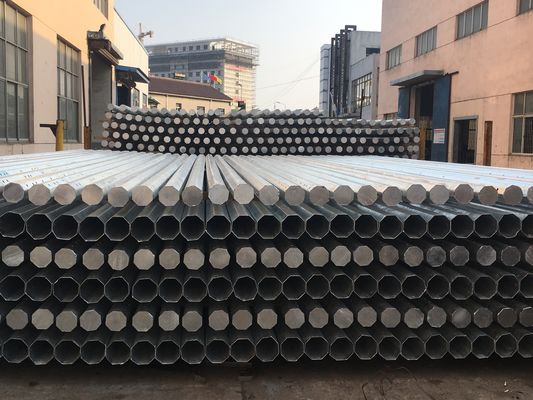

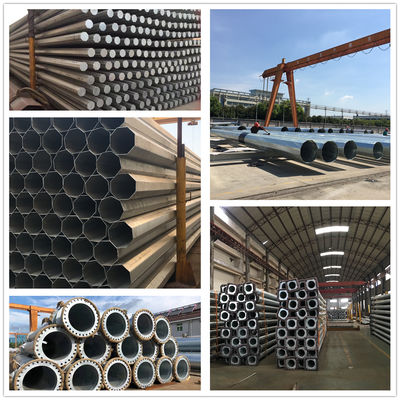

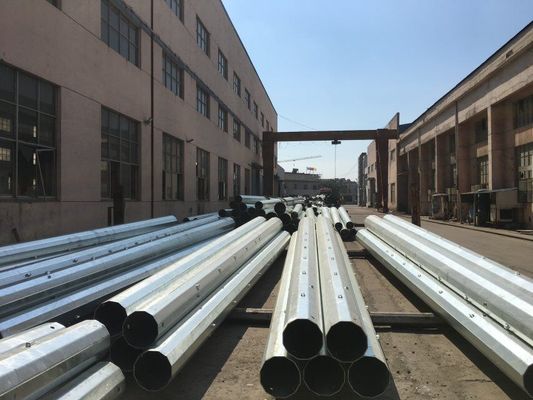

Project Applications
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 4 16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 5 16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 6

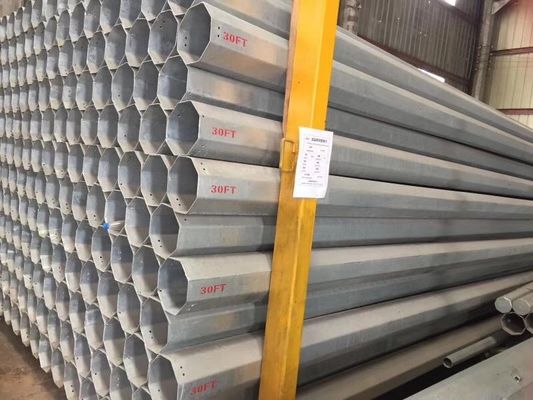

Product Specifications
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 7 16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 8 16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 9
Manufacturing Process
Material Testing
All raw materials (steel plates) require mill certificates from the factory. Upon arrival, quality control performs elongation tests and chemical composition analysis to verify compliance with standards before production begins.
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 10
Plasma Cutting
Certified materials are precision-cut using CNC laser cutting technology guided by motion control systems following CNC/G-code patterns, resulting in edges with superior surface finish.
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 11
Forming
Cut steel plates are formed into specified shapes (circular, polygonal, etc.) using specialized bending machines for metal stock.
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 12
Welding
Formed plates are welded longitudinally using AC inverter-controlled systems with seam-tracking arc-guide mechanisms for precision alignment and stable operation.
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 13
Galvanization
All poles receive complete hot-dip galvanization (internal and external) meeting IS2629-1985 and BS729-1971 standards for superior corrosion protection.

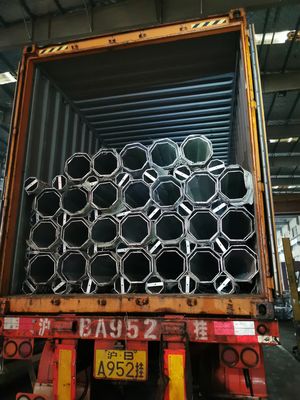

Packaging & Shipping
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 14 16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 15
Product Range
We manufacture various steel poles including: power transmission poles, street lighting poles, high mast lighting poles, traffic signal poles, telecom towers, and flag poles. All products undergo cutting, bending, forming, automated welding, quality checks, and hot-dip galvanizing or powder coating.
16m 800DaN 1000DaN Galvanized Electric Power Transmission Steel Pole for Direct Burial or Flange Type Installation 16
Business Terms
  • Pricing: EXW, FOB, CFR, or CIF (includes pole shaft, base plate, cross arm, and anchor parts)
  • MOQ: 1 set
  • Payment: 30% deposit by T/T, balance before shipment (other methods negotiable)
  • Lead Time: 10 workdays for 30 sets after deposit receipt
  • Design Service: 20-year support period
Frequently Asked Questions
How can I get a price quote?
Provide exact dimensions (height, thickness, material, diameters) or send drawings for accurate pricing.
Do you accept small orders?
Yes, we welcome small wholesalers and are happy to grow together with our clients.
Can you produce custom-designed samples?
We specialize in bringing custom designs to reality and welcome collaboration with designers.
How do I become an agent?
Submit your business profile and market strategy to delia@yin-he.com for consideration.
