홈 /제품 소개/강철 전봇대/132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기

132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기

one 40HQ
MOQ
협상 가능
가격
132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Name: 132KV High voltage 15m~30m Hot Dip Glavanized Transmission Electrical Steel Power Pole
Type: 132KV High voltage 15m~30m Hot Dip Glavanized Transmission Electrical Steel Power Pole
소재: ASTM 572 60 학년 460mpa 이상
Shape: Octagonal
높이: 15 ~ 30m
Galvanization standard: hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm
두께: 3~6mm
Welding standard: AWS D1.1 with penatration rate no less than 80%-100%
Joint of poles: 50 years
강조하다:

30m 강철 전력 기둥

,

132KV 강철 전력봉

,

15m 강철 전력 기둥
기본 정보
Place of Origin: China
브랜드 이름: Milky Way
인증: ISO9001
모델 번호: 132kV 고전압 15m ~ 30m 핫 딥 딥 횡단 변속기 전기 강 전력 극
결제 및 배송 조건
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: L/C,T/T
Supply Ability: 300 pieces pole per day
제품 설명

132KV High voltage 15m~30m Hot Dip Glavanized Transmission Electrical Steel Power Pole​



Specification
132KV 15m~30m transmission electrical steel power pole
Type
 132KV 15m~30m transmission electrical steel power pole
Shape
Octagonal
Material
ASTM 572 grade 60 with yield strength not less than 450mpa
Torlance of dimenstion
-0.02
Design Load in Kg
300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment
Hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm
Standard
Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section
Within 11.8m once forming without slip joint.
Option of steel power pole
Height from 15m to 30m
Flange mounted or planted type
Production Process of high mast pole
Raw material test → Cutting →Molding or bending
→Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration →Deburr→Galvanization or powder
coating ,painting →Recalibration→Thread →Packages


The products made by us is high resisitivity against heat ,humidity ,moisture,water etc. Owning to use the rare earth special craft during the productionprocess, to ensure its high precise, good quality and competitive advantage.Meanwhile, we can accept the product type damage test to ensure the highsafe factor of our products. Because of good quality and competitive pricecaused by innovation and management reform, experienced service infabrication ,design, installment, consultancy, we have built long-term relationship with many countries, such as America ,Morocco,Sir Lanka ,Russia, Jordan,Guyana,Nigeria, Australia, Spain, Indonesia, Singapore, the Philippines, Kenya,Areb etc.

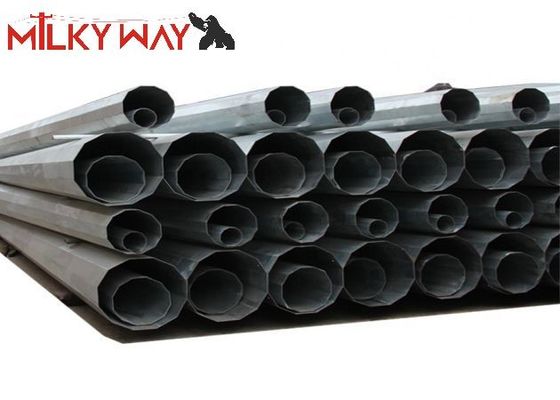

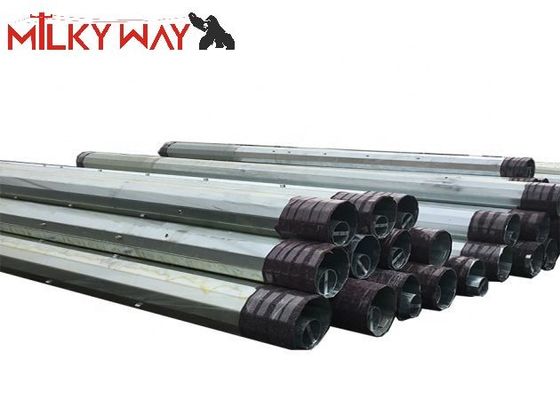

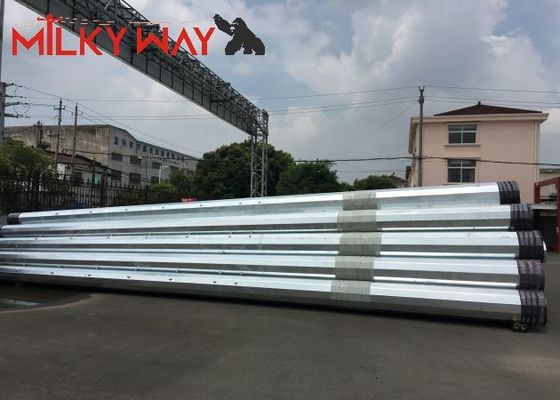

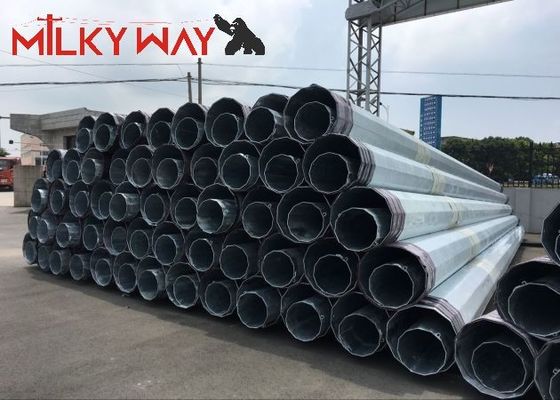

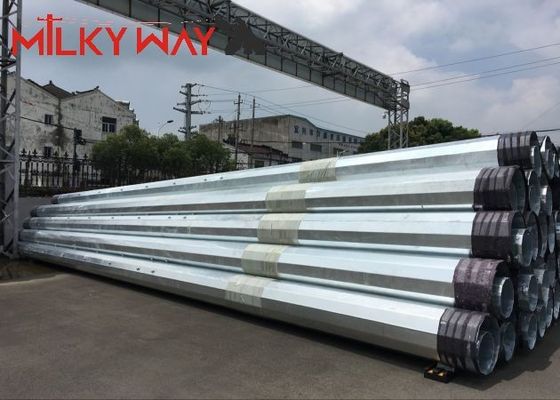

Products Picture

132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기 0







Material

ASTM 572 grade 50 with yield strength not less than 345mpa

132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기 1 132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기 2

132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기 3







3.Glavanization

---Average thickness of the galvanization : not less than 86 μm



 132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기 4





4. Manufacture Tolerance

---Componet Length:-25mm to 75mm

---Stranghtness: 2mm/m

---Twisting degree: 1° per 3 meters length

---Ovalisation: Maximum is 3%

---The average diameter : +/-0.5%

---Slip length: +/-150mm

 132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기 5





5.Standaed Accessory

---Top plate

---Base plate

---Bottom strip

---Climbing rung

---Anchor bolt

---Bitumen marking

---Removable ladder

132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기 6



Application

Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower

132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기 7



Company instruction:

JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.



132KV 고전압 15m ~ 30m 강철 전력 전구 핫 디프 Glavanized 전송 전기 8
