둥근 램프 패널로 다각형 태양력 등주를 밝히는 30m 주차장

1개의 콘테이너
MOQ
USD 130-180POLE
가격
둥근 램프 패널로 다각형 태양력 등주를 밝히는 30m 주차장
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
재료: S355JR
신청: 전기 배급
두께: 2.5-10mm
형태: 다각형
전기 요법: ASTM A123의 평균 coationg 85um 보다는 더 적은 아닙니다
용접: AWS D1.1의 침투 100%년
수명: 50 년
풍속: 160KM/H
궁극 장력 강도: 490-620MPA
강조하다:

30m 태양력은 pole

,

30m 태양 전지판 등주를 밝힙니다

,

다각형 태양력 빛이 막대기를 씁니다

기본 정보
원래 장소: 치안스, 중국
브랜드 이름: milky way
인증: ISO9001:2015
모델 번호: 69KV
결제 및 배송 조건
포장 세부 사항: 정상적인 포장은 콘테이너 (크기입니다: L*W*H). 정상에 매트 또는 밀짚 가마니 및 바닥 및 avoide에 극 사이 나무에 의하여 정상적인 덮개로 우리의 극은 또한 극의 전기
배달 시간: 항상 20DAYS
지불 조건: L/C (신용장), 전신환, 웨스턴 유니온
공급 능력: 1000POLES/MOUTH
제품 설명



Specifications:





Mast’s height



15m to 35m



Shape of mast

Polygon



Shafts are made of steel sheet that folded into required shape and

welded longitudinally by automaticarc welding machine



Head frame

The style according to client's requests and dimension as per customers

requirement



Length



Within 14m once forming without slip joint





Wall thickness



4mm to 20mm

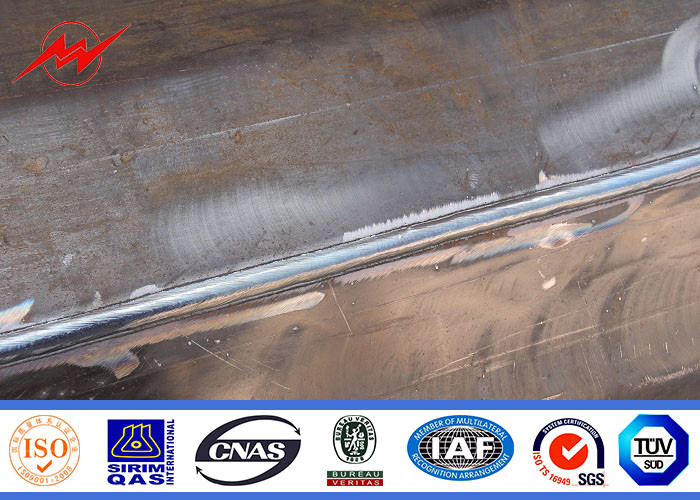

Welding

It has past flaw testing.Internal and external double welding makes the

welding beautiful in shape.

And confirms with international welding standard of CWB



Jointing

Slip Joint

Jointing of pole with insert mode, innerflange mode, face to face joint mode.

Base plate mounted



Base plate is square or round in shape with slotted holes for anchor bolt

and dimension as per customers requirement.

Ground mounted



The length buried underground as per customers requirement.



Galvanizing

Hot dip galvanization with thickness of 80-100µm average in accordance

with Chinese standardGB/T 13912-2002 or American standard ASTM A123,

IS: 2626-1985.





Powder coating



Pure polyester powder painting, color is optional according to

RAL Color stardand.

Wind Resistance



Aganist wind pressure of 160Km/h

Manufacturing



According to GB/T 1591-1994.





Quality Control



We control the quality according to the flow of ISO9001-2008. Quality is

employed at every stage of production to ensure

the product compliance to the specifications/standards. Careful inspections

are carried out by highly trained inspection engineers as per the defined

procedures from raw material stage to finished product and delivery.

Prototype assembly of towers is carried out in

the plant.



Certificates



ISO9001-2008 Audited Supplier



Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

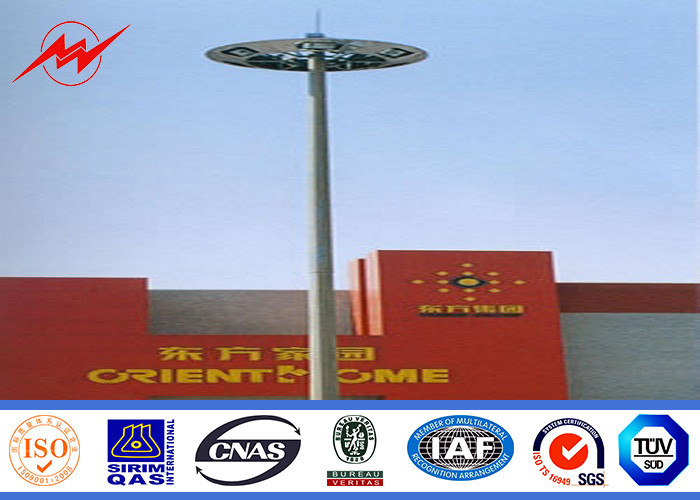

둥근 램프 패널로 다각형 태양력 등주를 밝히는 30m 주차장 0







Feature:

Special designed for stadium to provide high-power, large- area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for i nstallation and maintenance purposes

Light source :400w-1000w sodium light





Installation:
1. high-pressure sodium lamp with external ballast and Triggers installed in light tray.
2. when replacing or repairing light and other electrical appliances, you should use special wrench to open it.
3. control box installed at the poles or the lower part of the poles

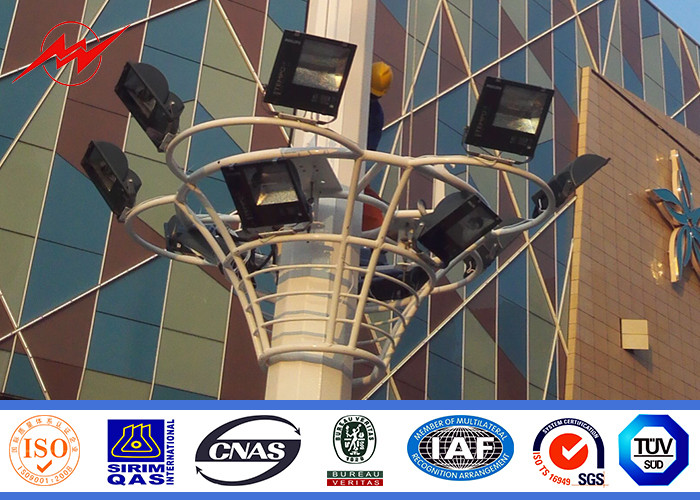

둥근 램프 패널로 다각형 태양력 등주를 밝히는 30m 주차장 1



Company instruction:

JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
