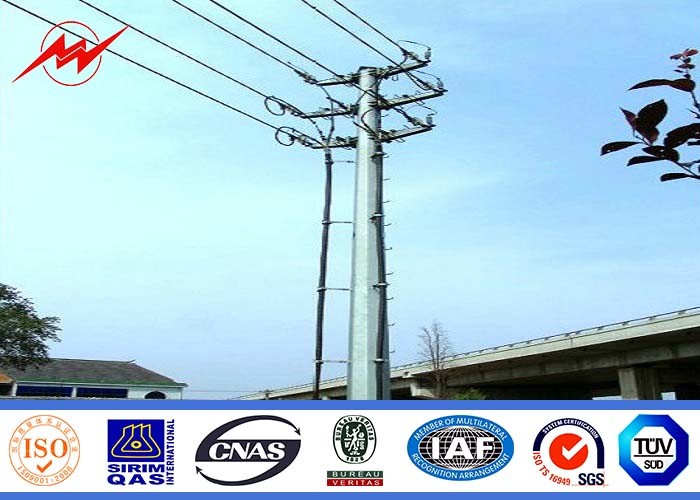

70ft Hot Dip Galvanized 12 Sided Electric Line Pole

1 PC
MOQ
협상 가능
가격
70ft Hot Dip Galvanized 12 Sided Electric Line Pole
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
타입: 배전 전력은 관모양 전력 전신주 아연도강을 막대기로 받칩니다
색: 관습
힘: 10 KV ~550 KV
사용 시간: 50 년
품질보증서: 15년
재료: 강철
강조하다:

70ft electric line pole

,

hot dip galvanized electric line pole

,

12 sided electric line pole

기본 정보
원래 장소: 중국
브랜드 이름: MilkyWay
인증: CE/BV/
모델 번호: 배전 전력은 관모양 전력 전신주 아연도강을 막대기로 받칩니다
결제 및 배송 조건
포장 세부 사항: 고객의 요구에 의하여
배달 시간: 저장고를 지불한지 20 일 뒤에
지불 조건: 전신환, L/C (신용장)
공급 능력: 주당 300
제품 설명

70FT hot dip galvanized 12 side Philippines steel pole wholesale



 Material:

All of our material are purchased from famous mill factory to assure the quality.

1.A mill certificate issued by the mill factory with stamp and signature must be provided before unload
the material in our factory ,otherwise we have our reason to refuse the material .

2.Before put into production ,all the material must pass the chemical and physical analysis to make
sure that they have meet the requested strength and component.

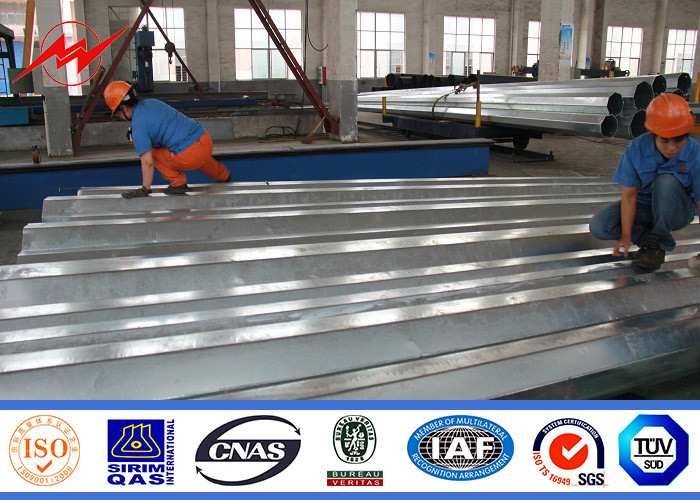

70ft Hot Dip Galvanized 12 Sided Electric Line Pole 0
Inspection:

To assure our products qualified ,we take steps as follows :
1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,
especailly the technical managemnt and quality management .
2.Introducing ISO management ,We are awared ISO 9001:2008 certificate.
3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed
QC in every manufacure steps and beofore every shipment.

Specifications:

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
                Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
 SS490, to ST52-

Lamp power

20 W- 400 W  (HPS/MH)
220V (+-10%) /50Hz

Torlance of the dimenstion

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per customer
requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,color polyester power or any
other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile
strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes the
welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending
→Welidng (longitudinal )
→Dimension verify →Flange welding →Hole drilling →Calibration
→ Deburr→Galvanization or powder coating ,painting →Recalibration
 →Thread →Packages

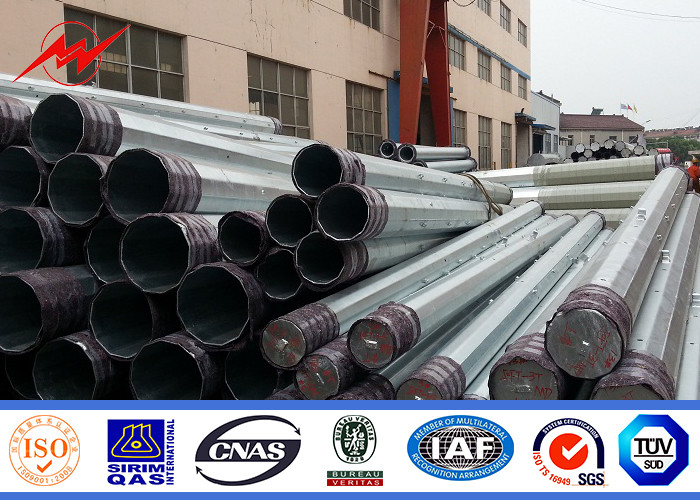

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required ,
 each 40HC or OT can loading how many pcs will calculation base on the
client actually specification and data.

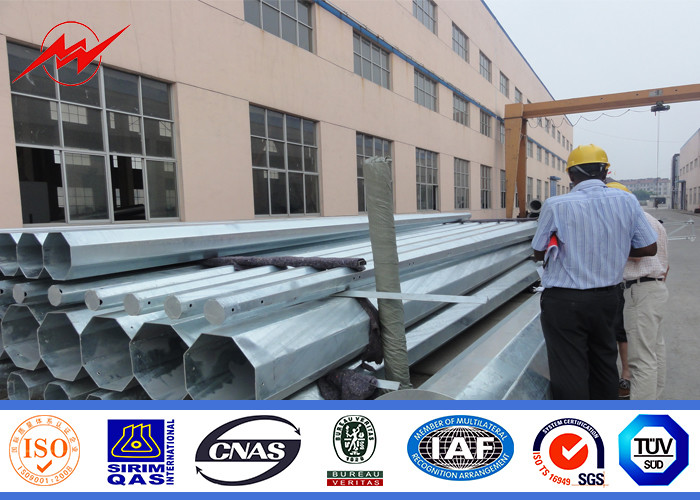

70ft Hot Dip Galvanized 12 Sided Electric Line Pole 1

Description:

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street
,road ,square ,palaestra.and so on.

 We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV
 transmission poels ,our products have been deliveried to more than 70 contries and areas ,including
America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on



Design and Detail :

Lofting and design software :We have transmisson power pole design software which can help us
design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the
design the drawing accuratly.
