제품 상세 정보:
결제 및 배송 조건:
|
| 타입: | 똑바른 극, 장력 극, 회전 극 | 처리: | 전기 요법 |
|---|---|---|---|
| 풍속: | 44m/s | dimenstion의 Torlance: | + - 2% |
| 안전율: | 1.8 | ||
| 강조하다: | 32m 강철 관 전주판,직류 전기로 자극된 강철 관 전주판,전송 강철 관 전주판 |
||

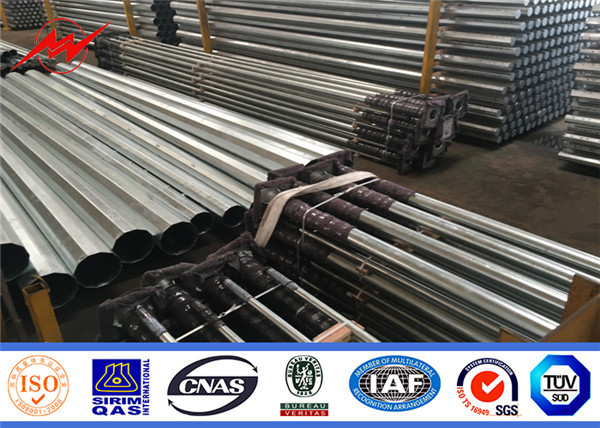

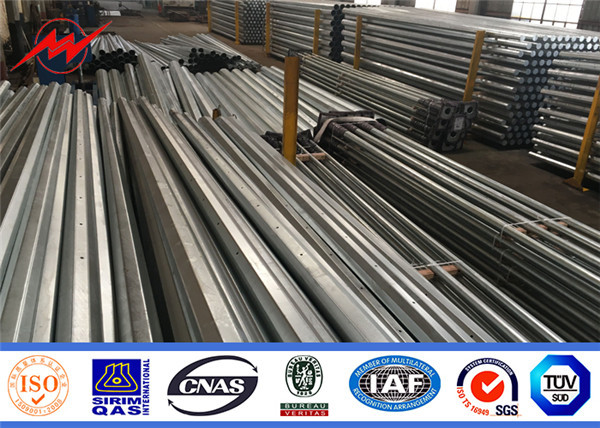

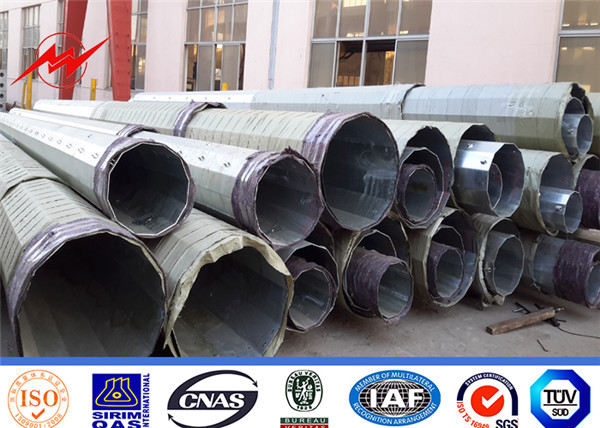

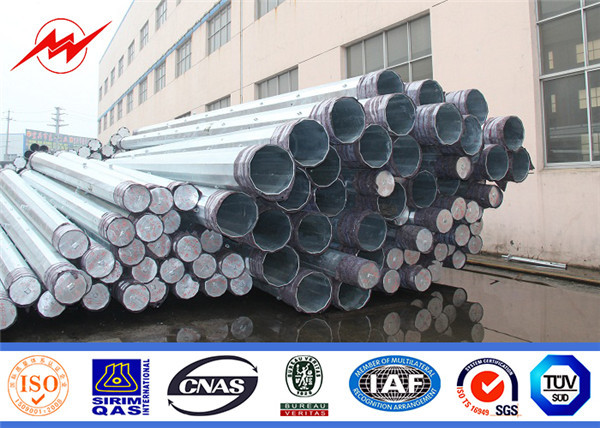

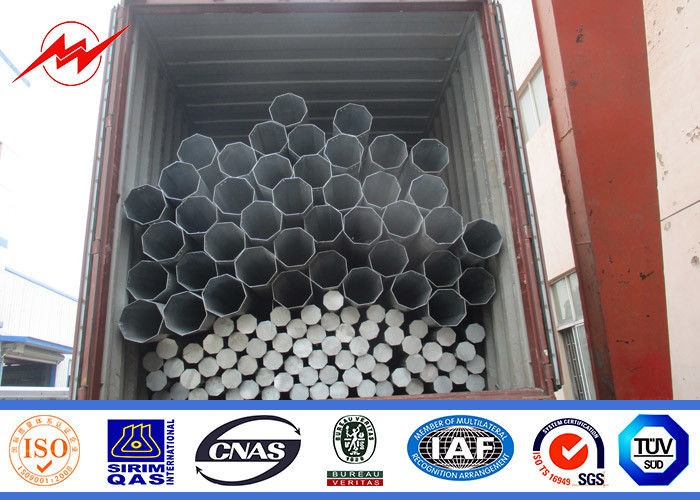

32m Galvanized electric power transmission steel pole/Steel Tubular Pole/steel tower
Specifications
|
Material: |
Hot rolled steel, Q235,Q345,S235, or customized |
|
Pole’s height |
3m –15m |
|
length |
Within 16m once forming without slip joint |
|
Wall thickness |
2.5mm-20mm or optional |
|
Pole's Shape: |
Round, Polygonal, Octagonal, Conial |
|
Arm type: |
Single arm, Double arm, or as per cliens' request |
|
Application: |
road,avenue, street, expressway, park, square |
|
Temperature range |
-35 °C~+45 °C |
|
Max wind velocity |
Aganist wind pressure of 160Km/h |
|
Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
|
Ground mounted |
The length buried underground as per customer’s requirement. |
| Electric Pole Specification-Congo | ||||||
| Height | Load(KN) | Top Diameter(mm) | Bottom Diameter(mm) | Wall Thickness(mm) | Pole Shape | Load Height(mm) |
| 8M | 2.5 | 100 | 210 | 2.75 | 8 | 6.2 |
| 8M | 5 | 120 | 290 | 2.75 | 8 | 6.2 |
| 8M | 6.5 | 130 | 330 | 2.75 | 8 | 6.2 |
| 8M | 8 | 170 | 360 | 2.75 | 8 | 6.2 |
| 8M | 10 | 180 | 405 | 2.75 | 8 | 6.2 |
| 10M | 11 | 145 | 334 | 3 | 12 | 8 |
| 11M | 6 | 120 | 246 | 3 | 12 | 8.9 |
| 11.8M | 5 | 150 | 355 | 3 | 8 | 9.4 |
| 11.8M | 6.5 | 180 | 400 | 3 | 8 | 9.4 |
| 11.8M | 8 | 190 | 440 | 3 | 8 | 9.4 |
| 11.8M | 10 | 190 | 450 | 3.5 | 8 | 9.4 |
| 11.8M | 12.5 | 220 | 500 | 3.5 | 8 | 9.4 |
| 11.8M | 16 | 230 | 560 | 3.5 | 8 | 9.4 |
| 11.8M | 20 | 240 | 585 | 4 | 8 | 9.4 |
| 11.8M | 25 | 260 | 655 | 4 | 8 | 9.4 |
| 11.8M | 32 | 260 | 660 | 5 | 8 | 9.4 |
Introduction
Electric Power Tower includes angle steel tower, tapered tubular steel, transformer substation framework, power plant framework and so on.
Electric power tower is the steel structure frame of bracing electrical wires, keeping a sage distance of guild wires and buildings on the ground. According to appearance, the power tower can be divided to glass type tower, cat head type tower, Shang type tower, Gan type tower and doliform tower. On the basis of application, power tower can be separated to tension type tower, linear type tower, angle type tower, transposition type tower, terminal type power tower and crossing type power tower. The design feature of all tower is space truss structure, forming by single equilateral angle steel, making of material of Q235 (A3F) and Q345 (16Mn) and using black bolt of shearing force to connect pole parts. The tower is mainly consists of angle steel, connecting steel plate and bolt, some is component part of steel plate welding, as column foot. The simple tower part making the hot zincification anticorrosion, transportation, construction and erection is much easy. Usually use shackles on main pole of tower which the height is less than 60 meters for convenience of workers to ascend.
Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.
Main Features
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
5 Warranty : 30 years
6.Surface treatment :hot dip galvanization
