8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen

중국 8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen 협력 업체
8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen 협력 업체 8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen 협력 업체 8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen 협력 업체 8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen 협력 업체

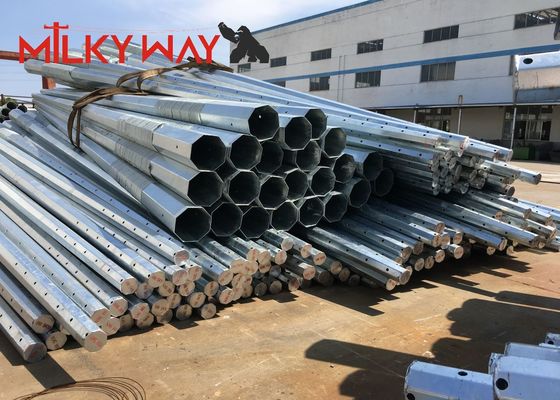

큰 이미지 :  8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen

제품 상세 정보:

원래 장소: 중국
브랜드 이름: Milky Way
인증: ISO//BV
모델 번호: 8m 11kv 13kv

결제 및 배송 조건:

최소 주문 수량: 1 40HQ
가격: 협상 가능
포장 세부 사항: 고객 요청에 따라서
배달 시간: 보통 확인하는 것 2 주 뒤에
지불 조건: T/T
공급 능력: 300개 부분은 하루에 막대기를 씁니다
상세 제품 설명
치수 공차: +- 2% 통풍 저항: 3-500km/h
소재: GR50 GR65 S500 S355 높이: 8m 11kv 13kv
용접: 용접은 CWB의 국제 용접 표준으로 확인합니다 파우더 코팅: 순수한 폴리 에스테르 파우더 페인팅, 색상은 선택 사항입니다
디자인: 지진 중 8 학년에 반대하여 제품 이름: 8m 11kv 13kV 전력 강철 극 전송 라인 프로젝트 역청이 있습니다.





Specifications



Material: Hot rolled steel, Q235,Q345,S235, or customized
Pole’s height 3m –15m
length Within 16m once forming without slip joint
Wall thickness 2.5mm-20mm or optional
Pole's Shape: Round, Polygonal, Octagonal, Conial
Arm type: Single arm, Double arm, or as per cliens' request
Application: road,avenue, street, expressway, park, square
Temperature range -35 °C~+45 °C
Max wind velocity Aganist wind pressure of 160Km/h
Base plate mounted Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.
Ground mounted The length buried underground as per customer’s requirement.



Specification for electric steel poles exported to Africa market

Electric Pole Specification-Congo
Height Load(KN) Top Diameter(mm) Bottom Diameter(mm) Wall Thickness(mm) Pole Shape Load Height(mm)
8M 2.5 100 210 2.75 8 6.2
8M 5 120 290 2.75 8 6.2
8M 6.5 130 330 2.75 8 6.2
8M 8 170 360 2.75 8 6.2
8M 10 180 405 2.75 8 6.2
10M 11 145 334 3 12 8
11M 6 120 246 3 12 8.9
11.8M 5 150 355 3 8 9.4
11.8M 6.5 180 400 3 8 9.4
11.8M 8 190 440 3 8 9.4
11.8M 10 190 450 3.5 8 9.4
11.8M 12.5 220 500 3.5 8 9.4
11.8M 16 230 560 3.5 8 9.4
11.8M 20 240 585 4 8 9.4
11.8M 25 260 655 4 8 9.4
11.8M 32 260 660 5 8 9.4







Introduction



Electric Power Tower includes angle steel tower, tapered tubular steel, transformer substation framework, power plant framework and so on.

Electric power tower is the steel structure frame of bracing electrical wires, keeping a sage distance of guild wires and buildings on the ground. According to appearance, the power tower can be divided to glass type tower, cat head type tower, Shang type tower, Gan type tower and doliform tower. On the basis of application, power tower can be separated to tension type tower, linear type tower, angle type tower, transposition type tower, terminal type power tower and crossing type power tower. The design feature of all tower is space truss structure, forming by single equilateral angle steel, making of material of Q235 (A3F) and Q345 (16Mn) and using black bolt of shearing force to connect pole parts. The tower is mainly consists of angle steel, connecting steel plate and bolt, some is component part of steel plate welding, as column foot. The simple tower part making the hot zincification anticorrosion, transportation, construction and erection is much easy. Usually use shackles on main pole of tower which the height is less than 60 meters for convenience of workers to ascend.



Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

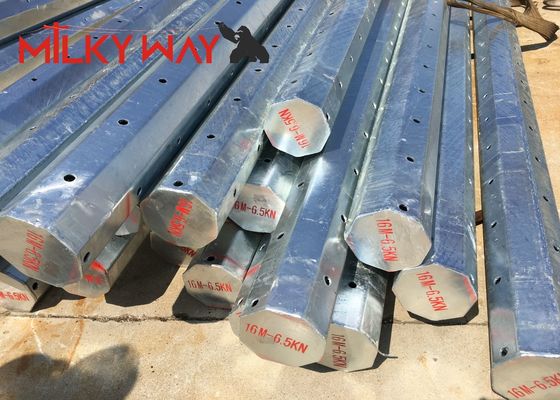

8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen 0







Main Features



1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
5 Warranty : 30 years
6.Surface treatment :hot dip galvanization

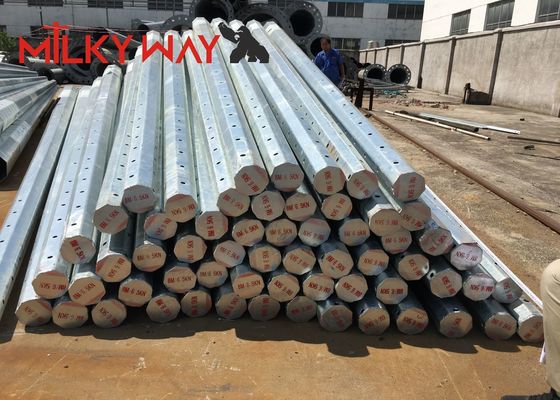

8m 11KV 13KV Electrical Power Steel Pole Transmission Line Project with Bitumen 1
