660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works

큰 이미지 : 660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works

제품 상세 정보:

원래 장소:	중국 장수
브랜드 이름:	Galaxy Power

결제 및 배송 조건:

최소 주문 수량:	500
가격:	$99

접촉

상세 제품 설명

전압:	220	재료:	나일론
중량 범위:	2.1kg-105kg	휠 직경:	120mm-1040mm
휠 너비:	30mm-125mm	지휘자 크기:	25mm²-1000mm²
정격 하중:	5kn-55kn	휠 재료:	나일론/알루미늄
프레임 재료:	아연 도금 강	베어링 유형:	볼 베어링
최대 지휘자:	≤1000mm²	최대로드:	55KN
최대 무게:	105kg	민 중량:	1.5kg
제품 차원:	660mm*100mm
강조하다:	660mm*100mm Cable Pulley , 220V Stringing Block , Nylon Conductor Pulley

660mm*100mm Conductor Combinations Nylon Cable Pulleys for Product Conductor and Cable

Product Description

Our high-quality nylon cable pulleys are available in different diameter combinations for various conductor applications. These large diameter stringing blocks offer exceptional strength, flexibility, and durability while remaining lightweight and easy to use.

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 0

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 1

Usage

These cable pulleys protect cables and conductors from friction during installation, saving both time and effort in overhead transmission line construction.

Key Features

Available in multiple models for various overhead transmission line construction applications
Designed to support conductors, OPGW, ADSS, and communication lines
Sheaves made from high-strength MC nylon or aluminum materials
Frames constructed from galvanized steel
Lateral models mounted on ball bearings for smooth operation

Custom Manufacturing

We can manufacture all types of pulley blocks according to customer specifications. Contact us for more information about custom solutions tailored to your requirements.

Product Parameters

Model	Wheel Size (Diameter x Width mm)	Conductor Size (mm²)	Rated Load (kN)	Weight (kg)	Wheel Material
SHD-120X30	120x30	25~70	5	2.1	Aluminum
SHD-160X40	160X40	95~120	10	3.1
SHD-200X40	200X40	150~240	15	3.7
SHD-200X60	200X60	150~240	15	4.1
SHD-250X40	250X40	150~240	20	5.1
SHD-250X60	250X60	300~400	20	5.4
SHD-270X60	270X60	300~400	20	6.7
SHD-320X60	320X60	300~400	20	10.4
SHD-400X80	400X80	400~500	20	11.9
SHDN-120X30	120x30	25~70	5	1.5	Nylon
SHDN-160X40	160X40	95~120	10	2.3
SHDN-200X40	200X40	150~240	15	2.5
SHDN-200X60	200X60	150~240	15	3
SHDN-250X40	250X40	150~240	20	3.6
SHDN-250X60	250X60	300~400	20	3.8
SHDN-270X60	270X60	300~400	20	4.3
SHDN-320X60	320X60	300~400	20	7.5
SHDN-400X80	400X80	400~500	20	8
SHD-508X75	508X75	≤400	20	22.3	Aluminum
SHD-660X100	660X100	≤500	20	30
SHDN-508X75	508X75	≤400	20	18	Nylon
SHDN-660X100	660X100	≤500	20	20
SHDN-830X110	830X110	≤630	30	25
SHDN-916X110	916X110	≤800	50	45
SHDN-1040X125	1040X125	≤1000	55	105

Customer Support

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 2

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 3

Pre-Sales Service

Inquiry and consulting support
Response to inquiries within 24 working hours
Factory viewing opportunities

After-Sales Service

Installation training
Inspection report provided

Product Images

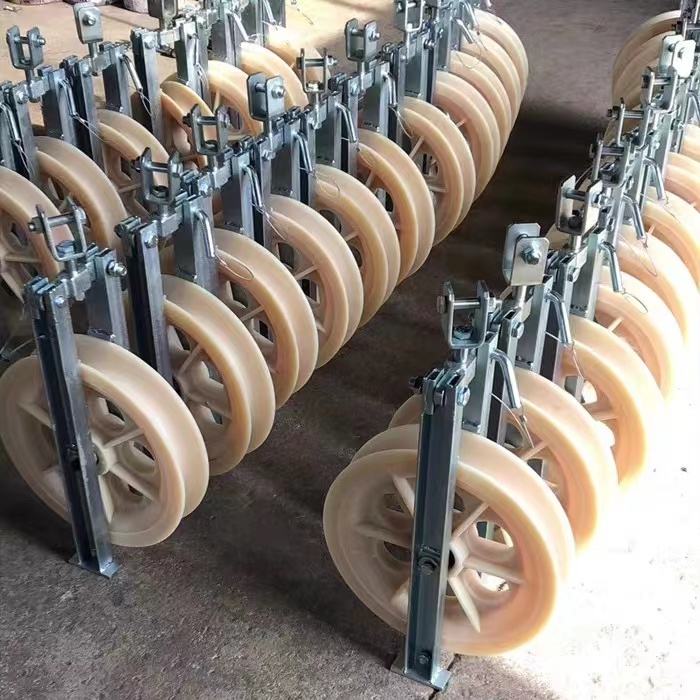

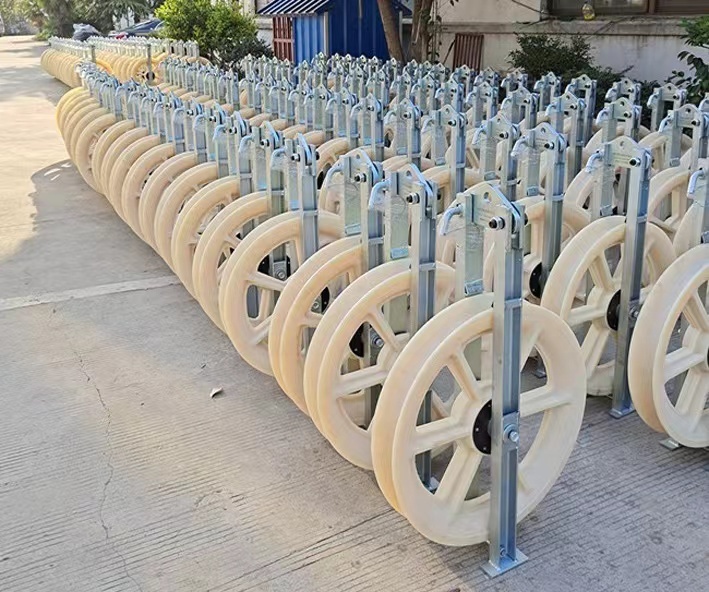

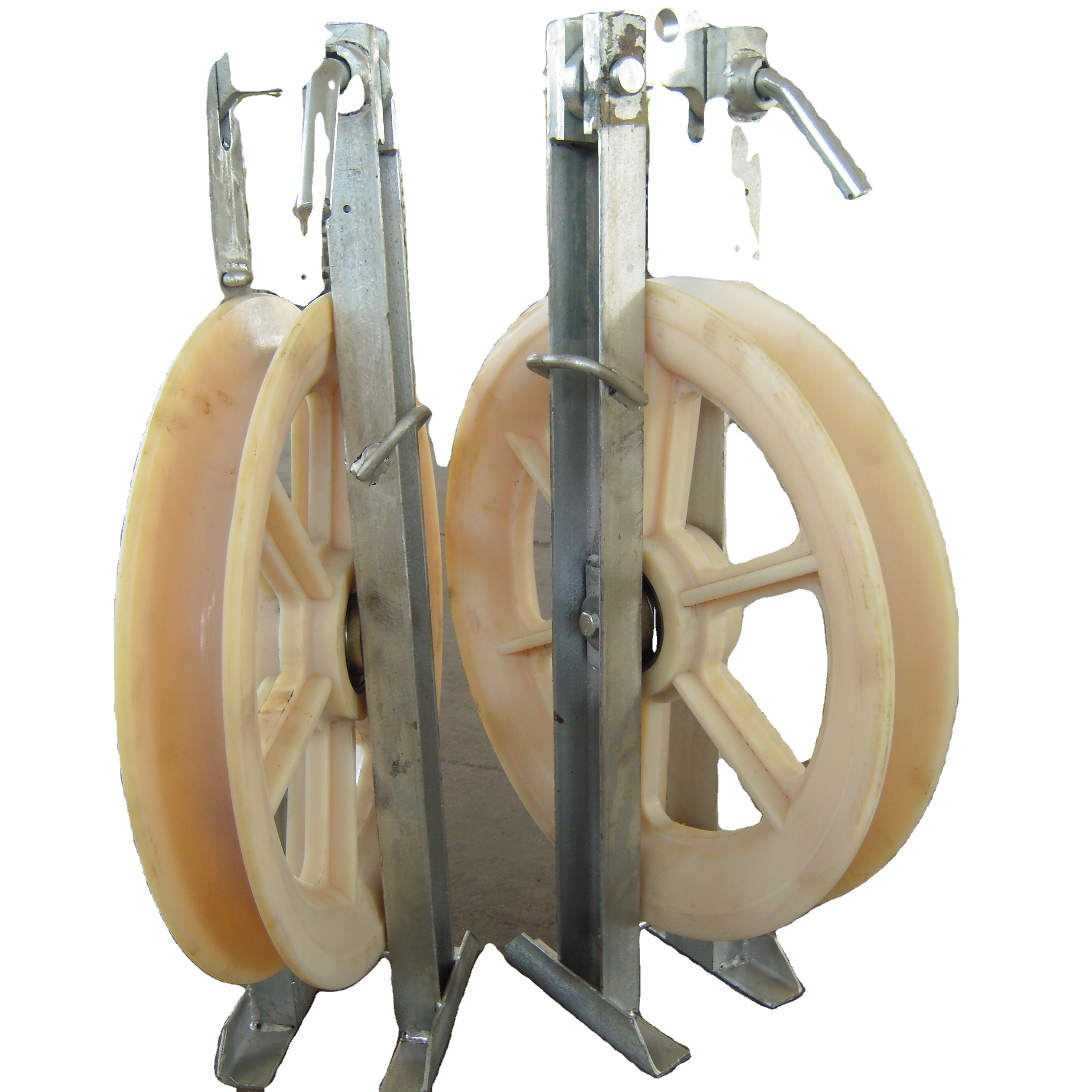

Single Conductor Pulleys

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 4

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 5

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 6

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 7

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 8

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 9

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 10

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 11

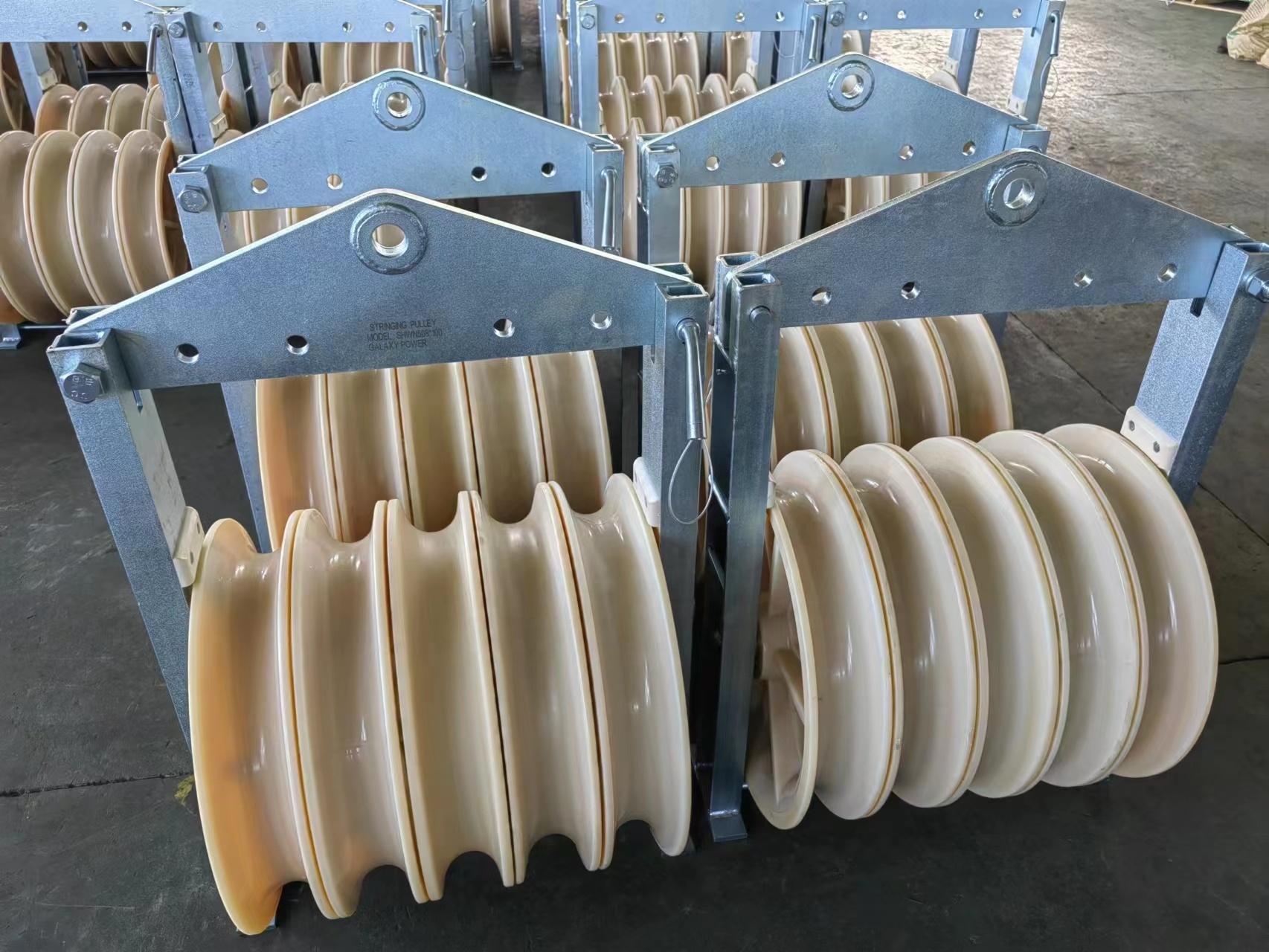

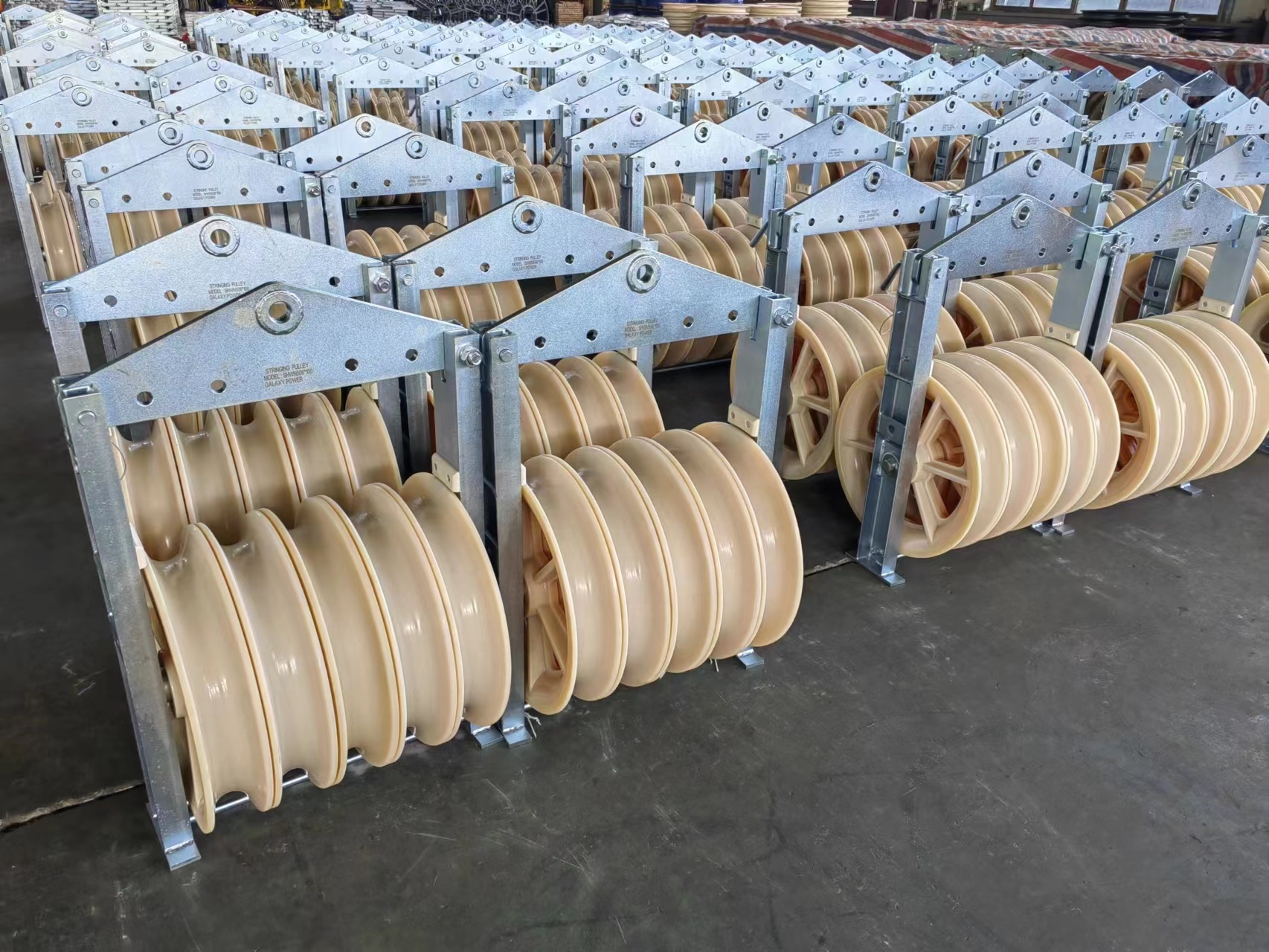

Three Conductor Pulleys

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 12

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 13

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 14

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 15

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 16

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 17

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 18

660mm*100mm Nylon Cable Pulley 220V Stringing Block for Construction Works 19

Company Profile

Established in 2016, Galaxy Power Industry Limited is a manufacturer specializing in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China with products that comply with international quality standards and are appreciated in markets worldwide.

Our products are sold in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan, and throughout China.

Main configurations from Germany and USA: American Cummins engine, German Rexroth main pump and motor, German WIKA hydraulic meter
One year quality guarantee with free replacement of faulty components
After warranty period, we supply specific components at cost price
